Model

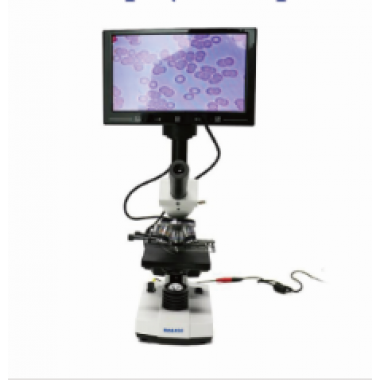

HPM550 (white background) 7 inch / 9 inch optional

Optics System

Infinity chromatic aberration

Viewing Head

Hinged head is tilted at 30 °

Display Size(Mm)

150*80mm(7 inch)/200*120mm(9 inch)

Eyepiece

High point flat-field ocular pl10x/18mm,

Objective

Flat apochromatic object lens 4X、10X、40X、

Converter

Three holes inclusion converter

Focus System

Coarse and fine coaxial, with a tightening device, mechanical upper limit

Stage

140*132mm single layer mechanical movement platform

Moving range: 76*50mm

Condenser

N.a.1.25 kola illumination collection lenses

Illuminator

100v-240v switching power supply, single high brightness led (6w), light intensity can be continuously adjusted

Photographic Device

1x photographic eyepiece

Photography System

With built-in high-definition imported photography system, the fast signal transmission speed, high color reproduction,goodimaging effect, and can observe the blood circulation, dried blood.

Other Function Configuration

Type c photography interface

Configuration List

Instrument body, monocular observation head, eyepiece, objective lens (4-10-40), power cord, built-in warranty wire, incense tar, dust bag, installation drawing, wall chart, blood collection needle, blood pen, slide slides,user manual, aluminum box, built-in high-definition photography system.

Packing Size

200*290*365mm
