Specification | Model (BMS7045 series) |
| Specification | B1 | B2 | B3 | B8L | STL2 | T-B1 | V-B1 |
Eyepiece | SZM7045: binocular head , 45 ° tilt, continuous zoom lens 0.7X-4.5X, working
distance 100mm. pupillary distance adjustment range of 54mm~76mm, depending on
the degree of bilateral adjustable ± 5 diopter . | √ | √ | √ | √ | √ |
|
|
SZM-7045TR tee viewing head . 45 ° tilt , 360 ° rotation ; photographic
camera can be equipped with the interface |
|
|
|
|
| √ |
|
SZM-7045V digital viewing head , built-in 3 million pixel CCD |
|
|
|
|
|
| √ |
Observation Head | WF10X/20mm (micrometer ) | √ | √ | √ | √ | √ | √ | √ |
WF15X/15mm (micrometer ) | √ | √ | √ | √ | √ | √ | √ |
WF20X/10mm (micrometer ) | √ | √ | √ | √ | √ | √ | √ |
AuxiliaryLens | 0.5X/165mm. 1.5X/45mm. 2X/30mm. | √ | √ | √ | √ | √ | √ | √ |
FocusBrackets | A1 focus frames, focusing hand wheel adjustable elastic , lifting range 50mm. | √ | √ | √ | √ | √ | √ | √ |
A3 industrial binding Focus Frame 2 ( industry-specific ) | √ | √ | √ | √ | √ | √ | √ |

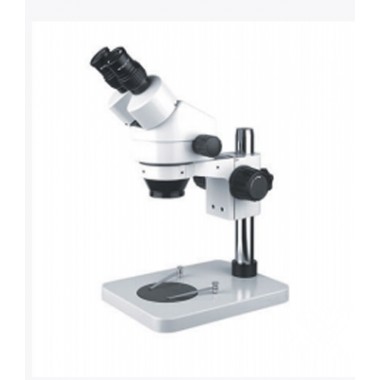

Base | B1 Column flat base | √ |
|
|
|
| √ | √ |
B2 Column transmission base , the upper and lower light source is a halogen
lamp 12V15W ( adjustable brightness ) |
| √ |
|
|
|
|
|
B3 Column large flat base |
|
| √ |
|
|
|
|
B8L Column LED light base |
|
|
| √ |
|
|
|
STL2 universal bracket arms |
|
|
|
| √ |
|
|
OtherExternalSources | Ring light / LED light / cold light illumination | √ | √ | √ | √ | √ | √ | √ |
PhotographyDevice | Photography connected tube ( with PK bayonet ), 3.2X photo eyepiece | √ | √ | √ | √ | √ | √ | √ |
ImagingDevice | 0.35X/0.5X/1.0XC type camera connected tube | √ | √ | √ | √ | √ | √ | √ |
Power Supply | AC110/220V±10%,50/60Hz | √ | √ | √ | √ | √ | √ | √ |
PackageSize | mm | 385*240 *370 | 500*260 *370 | 385*240 *370 | 510*360 *300 | 495*485 *290 | 385*240 *370 | 370*240 *470 |
Gross Weight | kg | 5.08 | 7.18 | 5.68 | 6.08 | 24.58 | 5.08 | 4.87 |
