Features:

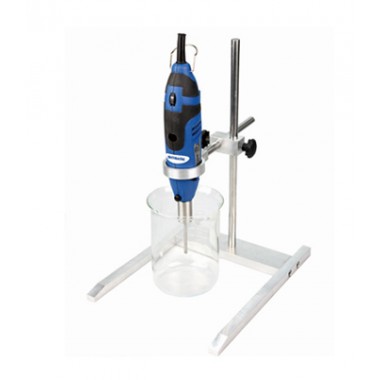

* For BK-HG160: light weight and ergonomic design, ideal for handheld operation.
* Safety switch for emergency stop, overload protection, smooth motor drive.
* All dispersing shafts are interchangeable for easy dismantling and cleaning.
* 316 stainless steel dispersing shafts are autoclavable and anti-corrosive.
Technical Parameters:
Model | BK-HG160 | BK-HG500 |
Speed Range | 8000-30000rpm | 10000-30000rpm |
Max. Circum. Speed | 6.3-14m/s | 22.7-36m/s |
Speed Control | 6 stage is adjustable by knob |
Working Volume (H2O) | 0.1-50ml (Dispersing shaft DS-160/5) 1-250ml (Dispersing shaft DS-160/10) | 10-40000ml |
Max. Viscosity | 5000mPas | 10000mPas |
Material of Dispersing Shaft | SS316 & PTFE seal ring |
Noise | ≤72dB | ≤79dB |
Ambient Temp. | 0-40℃ |
Relative Humidity | 85%RH |
Protection Type | IP20 |
Consumption | 160W | 500W |
Power Supply | AC110/220V±10%, 50/60Hz |
Standard Accessory | Base stand + DS-160/5 dispersing shaft Or Base stand + DS-160/10 dispersing shaft | Base stand + DS-500/1 dispersing shaft Or Base stand + DS-500/2 dispersing shaft |
Package Size (W*D*H)mm | 400*200*150 | 820*350*90 |
Gross Weight(kg) | 3 | 8.5 |
