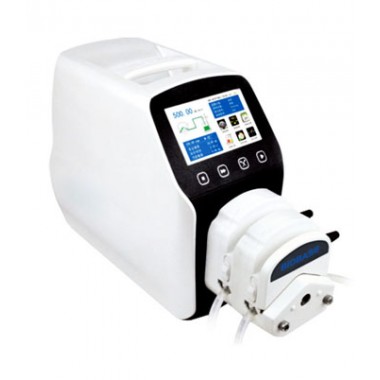

Intelligent Flow Rate Peristaltic Pump FPP-Lab V/ V Series

FOB Price:Get Latest Price >
Min.Order:1 Set(s)
Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A , Others(Negotiable)

Favorite

Biobase Biodustry (Shandong) Co., Ltd

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

Description

Features:

1. 4.3 inch color LCD display, touch screen control, dynamic display working status, display the flow volume and motor speed in the same screen.

2. Intelligent calibration function, it can calibrate the flow rate and dispensing volume, ensure the flow accuracy, suitable for high accuracy transferring liquid.

3. On-line micro adjust function, it can adjust the flow rate during production progress, to avoid the filling errors because of tubing fatigue and elasticity decreased.

4. Accurate angle control technology, to meet high precision metering and dispensing.

5. Fixed volume measurement function: After turn on this function, the peristaltic pump will measure the liquid volume automatically, it will stop automatically after the volume reaches the set value. During this process, the flow rate can be changed. It is suitable for laboratory liquid dosing and chemical reaction process.

6. Fixed time and volume function: After turn on this function, the peristaltic pump will transfer preset volume within preset time. It is suitable for liquid dispensing in laboratory and industrial production.

7. Timer start and stop function: Can set the pump start and stop time freely, reach automation control.

8. Load-shedding memory function, store the running parameters in time, safe and reliable.

9. Fast fluid-filled function, can wash the tubing and also fill fluid in the tubing.

10. High torque and low power loss, it can load several pump heads or multichannel pump head, meet different application requests.

11. 3 measurement modes: fixed volume measurements, fixed time and volume, timer start and stop.

Technical Parameters:

Model	FPP-LabV/ FPP-V1				FPP-LabV3/FPP-V3		FPP-LabV6/FPP-V6
Drive	LabV1/V1				LabV3/V3		LabV6/V6
Speed range	0.1-150rpm				0.1-350rpm		0.1-600rpm
Pump Head	YZ1515x	YZ2515x	MC1-MC12(10)	MC1-MC12(6)	YZ1515x	YZ2515x	YZ1515x	YZ2515x
Tubing Size	13#,14#. 19#,16#. 25#,17#, 18#	15#, 24#	ID:0.13-3.17mm,		13#,14#, 19#,16#, 25#,17#, 18#	15#, 24#	13#,14#, 19#,16#, 25#,17#, 18#	15#, 24#
			Wall thickness: 0.8-1.0mm
Flow Rate ( mL/min)	0.007~570	0.17~435	0.000067-32	0.00008-45	0.007~1330	0.17~1015	0.007~2280	0.17~1740
Flow rate range	0.000067-570ml/min				0.000067-2100ml/min		0.000067-3600ml/min
Speed precision	0.01 rpm
Flow rate precision	<±0.5%
Back suction angle	0-360°
Output pressure	0.1Mpa(0.86-1.0mm wall thickness tubing)
	0.1~0.27Mpa(1.6-2.0mm wall thickness tubing)
Motor type	Stepper motor
Circuit System	FPP-LabV series: LabV-CIR; FPP-V series: V-CIR;
Display	LCD screen
Control method	Touch screen and mask keypad
External control	0-5V, 0-10V, 4-20mA
Start/Stop direction Singal	Passive switch signal, such as : foot pedal.
	Active switch signal: 5V, 12V, 24V for option.
Communication Interface	RS232, RS485 support MODBUS protocol (RTU mode)
Power supply	220V±10%, 50Hz/60Hz ( standard),
	110V±10%, 50Hz/60Hz (optional)
Drive external size	FPP-Lab V series: 216.4157.3236.9mm
	FPP-V series: 219.4152211.6mm
Drive weight	5.02kg
Consumption	＜50W
Working condition	Environment temperature: 0-40℃
	Relative humidity: ＜80%
IP rate	IP31
