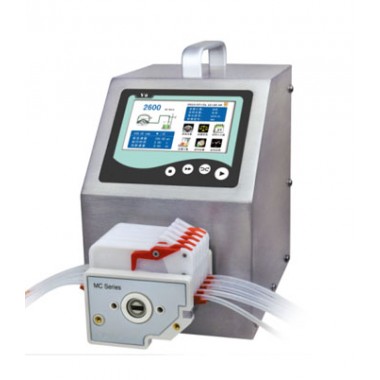

Intelligent Flow Rate Peristaltic Pump FPP-V6 Series

  • FOB Price:Get Latest Price >
  • Min.Order:1 Set(s)
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA , D/A , Others(Negotiable)
  • Favorite
Biobase Biodustry (Shandong) Co., Ltd

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

Description

Features:

1. Imported 4.3 inch - industrial grade - true color LCD screen.

2. Serve motor drive, precise control, strong power, low vibration and low noise.

3. BIOBASE-V-CIR circuit system, use imported chips, computing speed fast, reliable performance, working stable.

4. BIOBASE-V-EMB operation system, embedded software design, powerful function, friendly interface,  attention to users’ experience.

5.  Intelligent calibration function, can calibrate the flow rate or dispensing volume, ensure the flow rate accuracy. Suitable for high precision transferring liquid.

6.  Fixed volume measurement function: After turn on this function, the pump will measure the liquid volume automatically, it will stop automatically after the volume reach the set value. During the process, you can change the flow rate freely. It is suitable for laboratory liquid dosing and chemical reaction process.

7.  Fixed time and volume: After turn on this function, the pump will transfer fixed volume within set time. It is suitable for liquid dispensing in laboratory and industrial production.

8.  Timer start and stop function: Can set the pump start and stop time freely, reach automation control.

9. Online micro adjusting function. During the production process, if the tubes fatigue or abrasion, you can use the online micro adjusting function to adjust the flow rate without stop the pump.
10. Unique accurate angle control technology, achieve high accuracy dispensing and dosing.

11. Fast filling function, not only can be used for washing the tubing, but also can fill liquid to the tubing fast.

12. Automatic temperature control system, reducing the fan noise effectively.

13. Power down memory function, store the running parameters in time, safe and reliable.

14.  Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.

15. Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.

16.  304 stainless steel housing, comply with pharmaceutical GMP certificate requirement.

17. DZ25-3L, DZ25-6L and YZ35 pump head, aluminum alloy material, 304 stainless steel rollers, strong rigidity, high accuracy, reliable performance, excellent quality.

Technical Parameters:

Model

FPP-V6-3L

FPP-V6-6L

FPP-V6-12L

Drive

V6-3L

V6-6L

V6-12L

Pump Head

DZ25-3L

DZ25-6L

YZ35

Tubing

15#

24#

35#

36#

15#

24#

35#

36#

73#

82#

Flow Rate (mL/min)

0.211-900

0.385-1800

0.508-3000

0.6-3600

0.3-1800

0.55-3300

0.8-4800

1.0-6000

1.23-7400

2.0-12000

Flow rate range

0.211-3600mL/min

0.3-6000mL/min

1.23-12000mL/min

Speed range

0.1-600 rpm, reversible

Speed precision

0.01 rpm

Flow rate precision

0.01mL

Accuracy

<±0.5%

Back suction angle

0-360°

Output pressure

0.3Mpa

Control method

Touch screen and mask keypad

External control speed

0-5V, 0-10V, 4-20mA

External control start/stop and direction

Passive switch signal, such as : foot pedal switch

Active switch signal: 5V, 12V, 24V for option.

Communication interface

RS232, RS485 support MODBUS protocol (RTU mode)

Output interface

Output motor working status ( Open-Collector output)

Power supply

AC220V±10%, 50Hz/60Hz ( standard),

AC110V±10%, 50Hz/60Hz (optional)

Drive size

223*152*200mm

283*192*218mm

302*223*275mm

Drive weight

5.05kg

7.85kg

13.14kg

Consumption

<80W

<180W

<300W

Working condition

Environment temperature: 0-40℃,

Relative humidity: <80%

IP rate

IP31
