Features:
* Low power consumption
* 304 stainless steel housing, resist corrosion. (CPP-SP series)
* Support RS485 with MODBUS protocol, convenient to connect with PLC.

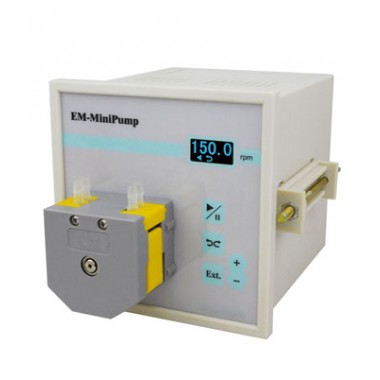

* Embedded design,small volume, suitable for installing in other instruments. (CPP-EM series)
Technical Parameters:
Model | CPP-EM1 | CPP-SP1 | CPP-EM2 | CPP-SP2 |
Drive | MEM-MiniPump | SP-MiniPump | EM-MiniPump | SP-MiniPump |
Pump Head | MiniPump 01 | MiniPump 02 |
Channel | 1 | 2 |
Tubing | 13# | 14# | 16# | 25# | 1*1 | 2*1 | 2.5*1 |
Flow Rate( ml/min) | 0.0024--8.28 | 0.0112--33.88 | 0.0394--114.31 | 0.0652 --190.00 | 0.005--15.01 | 0.018--54.63 | 0.0256 --76.84 |
Flow Rate Range | 0.0024~190ml/min |
Speed Range | 0.1~300rpm, reversible |
Speed Resolution | 0.1rpm |
Flow Rate Resolution | 0.01ml |
Motor Type | 42 stepper motor |
Display | OLED screen | LED screen | OLED screen | LED screen |
Control Method | Mask keypad | Toggle switch and digital knob | Mask keypad | Toggle switch and digital knob |
External Control | 0~5V, 0~10V, 4~20mA; RS485 communication interface, MODBUS protocol. |
Environment Temperature | 0~40℃ |
Relative Humidity | <80% |
IP Rate | IP31 |
Power Supply | 24V DC, with power adapter |
Consumption | <15W |
Drive External Size (L*W*H)mm | 110*120*120mm | 136*113*108mm | 110*120*120mm | 136*113*108mm |
